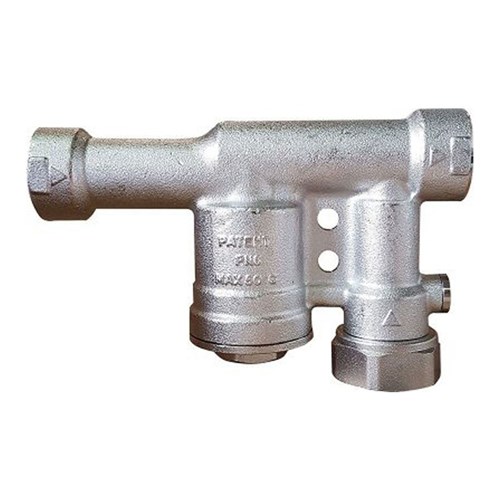

RM1600-2 Rain-to-Mains Changeover Valve 20mm WM LN 60075

Product Code: PGUAR-RM1600-2

RRP $420.60
$420.60 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description

The RM1600-2 is an automatic hydraulically operated main to rainwater changeover valve. It is ideal for rainwater harvesting and will switch from your tank water to your mains water supply (whenever your tank is empty, during a power outage or pump failure). This unique valve comes with 25mm (1″) inlets / 20mm (3/4″) outlet, giving the user flexibility in domestic applications up to a maximum flow rate of 50L/min. This product must be used with pumps with an auto restart pressure controller.

Features
  • Easy to install
  • Patent design
  • Watermark certified
  • Does not require regular maintenance
  • No electrical consumption – No electronic components
  • Solid brass construction – Fully weatherproof – Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
APPLICATIONS
  • Suitable for up to 2 toilets, washing machine, and 1 outside tap
  • Rain to Mains Systems
  • Domestic
  • Small commercial buildings
  • Small toilet blocks
Technical Specifications
Brand Reefe
Inlet Port 25mm / 1? FBSP
Outlet Port 20mm / 3/4? FBSP
Maximum Flow (L/MIN) 50L/min
Weight 0.85 kg
Max Pressure 500 kPa
