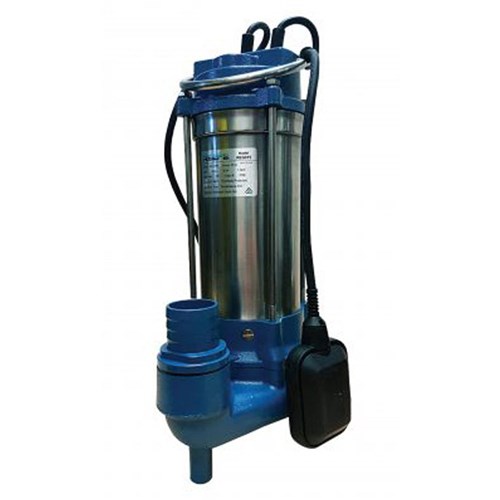

REEFE REG015 Grinder Pump 1.5kW Auto

Product Code: PGUAR-17937

RRP $1248.69
$1248.69 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description

The REEFE REG015 macerator pump is the perfect all-rounder when it comes to wastewater. The hybrid design means you get higher flows like a cutter pump but with higher head pressure and grinding benefits of a grinder. The external cutter mechanism means the solids are cut before entering the pump which means fewer blockages and much easier maintenance. Suitable for industrial, agricultural, mining, and dairy wastewater transfer applications.

Features
  • Ideal for narrow pits & sumps
  • Liquid temperature 0˚to 40˚C
  • PH Range 4.0 to 10.0
  • Unique anti-clogging impeller design
  • Float Switch for automatic operation
  • Electrical Safety Approval to AS/NZS 60335.2.41
CONSTRUCTION
  • Pump body: stainless steel (AISI304)
  • Cast iron impeller
  • Stainless steel motor shaft
  • Silicone-carbide/ceramic mechanical seal
  • Cast iron base
  • The grinder mechanism is made of hardened S/S grade 44˚C
  • Protection class IP68
  • Insulation Class B
APPLICATIONS
  • Industrial wastewaterAgricultural wastewater
  • Animal effluent waste
  • Mining camp wastewater
  • Dairy waste transfer
  • Suitable for pumping sewage containing organic waste, paper, sanitary items, mud, and sand
Technical Specifications
Brand Reefe
Outlet Port 50 mm
Maximum Flow (L/MIN) 5.8 L/sec
Maximum Head (M) 19.5m
Size 260 x 180 x 490
Weight 25 KG
