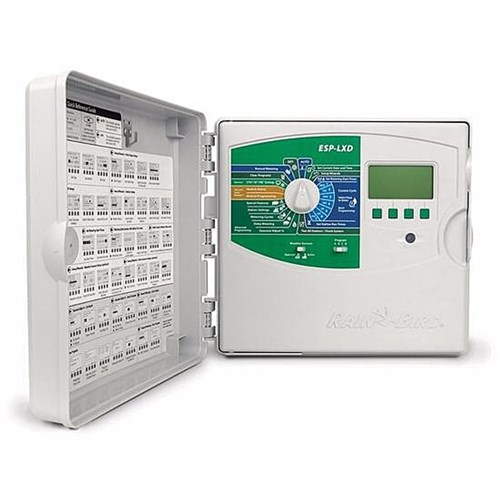

RAINBIRD-ESP-LXD 50 Station Modular to 200 Station, 2 Wire Decoder, Outdoor

Product Code: RB-F43130

Rain Bird
RRP $5512.23
$5512.23 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description
The ESP-LXD controller has been designed to maintain the look, feel and ease of programming of the ESP-LXME controller but with an interface to a two-wire path for decoder-based irrigation. The ESP-LXD controller can manage up to 50 stations but can easily be expanded for use with up to 200 stations. Flow Management is also built into every ESP-LXD controller.


Manufacturer Link
Features
  • 50-station capability standard expandable to 200 stations with optional ESPLXD-SM75 modules
  • Four available sensor inputs (one wired plus up to three decoder managed) with override switch
  • Five flow sensors supported
  • Supported decoders: FD-101TURF, FD-102TURF, FD-202TURF, FD-401TURF, FD-601TURF
  • Supports SD-210TURF sensor decoders (flow sensing and weather sensor support) and LSP-1 line surge protectors (one per 500 feet of two-wire path required)
  • Central Control capable with Rain Bird IQ Communications Cartridges and software (see pg. 102)
  • Advanced Features From Cycle+Soak™ to Contractor Default Program™, the ESP-LXD offers innovative features proven to cut installation expenses, troubleshooting time and water use
  • Program backup and barcode decoder address entry with the optional PBCLXD
  • Six user-selectable languages
  • Removable front panel is programmable under battery power
  • Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
  • Compatible with Rain Bird Landscape Irrigation and Maintenance Remote - Flow Smart Module™ factory installed or field upgradable
  • Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
Technical Specifications
Brand Rainbird

Documents
