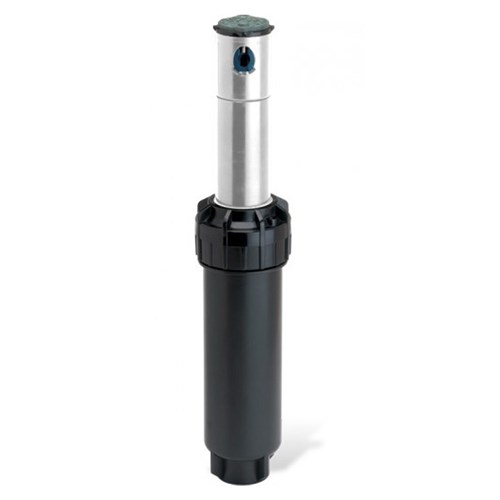

RAINBIRD 5004 PLUS, 4" Part/Reverse Full Circle Rotor with SAM - PRS - SS

Product Code: RB-Y65750SS

RRP $70.14
$70.14 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description

Rainbird 5004+PCSAM gear-driven rotor with 4″ pop-up riser height and built-in check (non-return) valve. Plastic riser, 3/4″ BSP inlet.

The “+” denotes Flow-Shutoff, meaning that the sprinkler’s flow can be completely shut off while the sprinkler is operating. This is great for adjusting nozzles or reducing one sprinkler’s operation while other sprinklers on the same station remain operating.


Manufacturer Link

The “R” indicates that this sprinkler has in-built PRESSURE REGULATION.

The “SS” indicates that this sprinkler has a stainless cased riser.

The 5000 Series rotor fits in between the large rotors and the smaller landscape sprinklers. It works perfectly on golf tees, where its 7-15 metre throw fits most tees while conserving water and providing great uniformity. A number of options are available including plastic or stainless risers, 4″, 6″ or 12″ pop-up heights, check valves and pressure regulation. Coupled with this, the 5000 series can also utilize our 5000 MPR nozzles, which provide “matched precipitation” when using rotors with different arcs.

  • Radius 7.6 – 15.2 metres
  • Precipitation rate 13-18mm/hour
  • Pressure range 1.7 – 4.5 bars
  • Flow range 0.17 – 2.09 cubic metres per hour.
  • 4″, 6″ and 12″ pop-up riser heights are available
  • Choose between plastic and stainless risers.
  • MPR nozzles are available to provide “Matched Precipitation”
  • Check valve option to prevent draining.
  • PRS 3.1 bar pressure regulator option available









Features
  • Exclusive Triple Blade Wiper Seal - providing seven times the leak protection of single-blade wiper seals, the Triple-Blade Wiper Seal makes 5000 rotors the most leak-resistant rotors on the market. Designed to keep water in and debris out, the Triple-Blade Wiper Seal saves you time and money—and it saves your reputation, too
  • Industry-Leading Rain Curtain Nozzles - engineered to provide a uniform spray pattern that competitors can’t match, Rain Curtain nozzles deliver large water droplets for superior wind resistance and gentle close-in watering that eliminates brown spots around the head
  • Options for Every Application - with three models available (Plus, PRS and SAM), 5000 series rotors give you options that meet the expectations of your business or the demands of any job site
  • Backed by a 5-Year Trade Warranty - built to the highest quality standards, every 5000 series rotor is backed by the confidence of a 5-year trade warranty
Technical Specifications
Brand Rainbird
