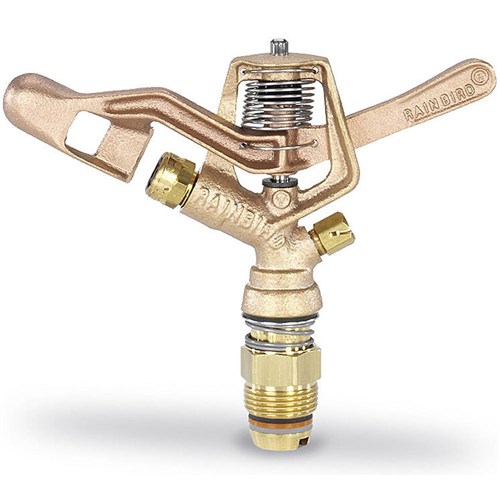

RAINBIRD-20MM BSP, 30H Brass, Full Circle - without Nozzle

Product Code: RB-A08401

RRP $82.40
$82.40 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description
Designed for general field use on hand lines, solid sets, permanent set, or mechanically moved systems. May be used with plastic non-clog vanes for better range and wind resistance.


Manufacturer Link
Features
  • 3/4" (19mm) male NPT brass inlet bearing
  • Full circle operation
  • Dual nozzle port for in-close and distance irrigation
  • Heavy duty brass construction
  • Stainless steel springs and fulcrum pin
  • Brass bearing sleeve
  • Back by five-year Customer Satisfaction Policy
  • For use with Rain Bird SBN-3 Straight Bore Nozzle or SBN-3-V Straight, Bore Nozzle with Vane; the Spreader nozzle port uses Rain Bird LAN-1-7, LAN-1-20, or brass plug; all nozzles sold separately
  • H Model ships without nozzle and without spreader nozzle, WH Model ships without nozzle with spreader nozzle plugged
Technical Specifications
  • Bearing: 3/4" Male NPT, Brass
    Trajectory Angle: 27 degrees
    Operating Range: 25-80 psi (1.7-5.5 bar)
    Flow Rate: 2.9-13.1 GPM (0.51-1.47 m3/h)
    Radius: 40-56 ft. (12.2-17.2 m)
    Nozzle Port: 1/4" Female NPT
    Spreader Nozzle Port: 1/8" Female NPT
Technical Specifications
Brand Rainbird
