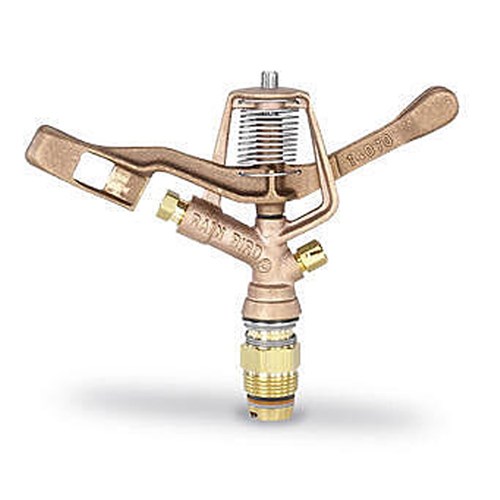

RAINBIRD-20MM BSP, 14070H Brass, Full Circle - without Nozzle WHILE STOCKS LAST

Product Code: RB-A12800

RRP $82.74
$82.74 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description
Designed for general use, or for mechanically-moved systems - especially center pivot machines. A wide range of nozzles is available.
Features
  • 3/4" (19mm) male NPT brass inlet bearing
  • Full circle operation with an extra large body accommodates a wide range of flow rates
  • A long nozzle barrel increases the distance of throw
  • Stainless steel springs and fulcrum pin
  • Dual nozzle port for in-close and distance irrigation
  • Back by five-year Customer Satisfaction Policy
  • For use with Rain Bird SBN-3 Straight Bore Nozzle or SBN-3-V Straight Bore Nozzle with Vane; Spreader nozzle port uses Rain Bird LAN-1-20 or brass plug; all nozzles sold separately
Technical Specifications
  • Bearing: 3/4" Male NPT, Brass
  • Trajectory Angle: 27 degrees
  • Operating Range: 25-80 psi (1.7-5.5 bar)
  • Flow Rate: 4.2-23 GPM (0.97-5.34 m3/h)
  • Radius: 44-71 ft.(13.57-22.10 m)
  • Nozzle Port: 1/4" Female NPT
  • Spreader Nozzle Port: 1/8" Female NPT
Technical Specifications
Brand Rainbird
