Hydra Rainmaster Duo Filter Kit for Non Potable Rainwater 90 Mic Mesh 10 Mic Carbon Block

Product Code: MERW-807343

RRP $350.00
$350.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description

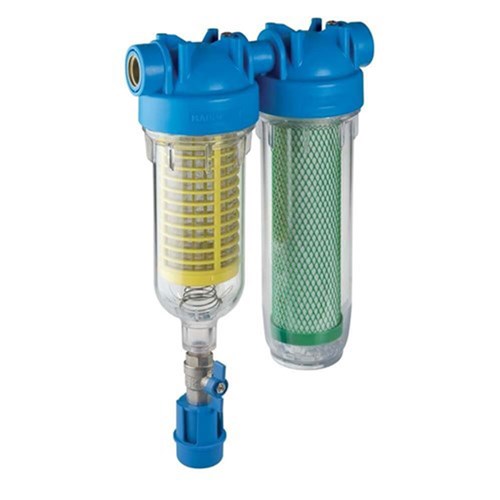

A Hydra Rainmaster Duo Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90-micron stainless steel mesh filter moulded to a second 10” Std housing containing a 10-micron eco-friendly carbon block filter cartridge.

Specially Designed for sediment filtration on non-potable rainwater supplies.

Flow rates up to 91lpm, however, note that lower flows = lower pressure loss and better ability of the carbon to deal with odour.

The filter bowls are made from PET with an exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges gives an easy visual indicator of when the filter should be cleaned.

Features
Hydra – Cleans Your Water, Cleans Itself

Italian made, for superior construction, the Atlas Filtri hydra range of hydra self-cleaning filters make coarse sediment filtration easy and convenient.

Features include:

  • A range of low-maintenance mesh filters are available to fit your needs
  • Cartridges feature an antimicrobial flat seal
  • Counter-current self-cleaning system that can be either manual or automatic for maximum particle removal
  • The drain funnel has a backflow preventing device, so this is as easy to install on mains as it is in rural
  • All Hydra models come with
    • Spanner
    • Bracket
    • Lubrikit (O-ring Lubricant)
Working Conditions
Max Working Pressure 8bar (116 psi)
Max Working Temperature 45°C (113°F)
Min Working Temperature 4°C (39.2°F)
Hydra Rainmaster

The Hydra Rainmaster units are multistage units designed especially for non-potable rainwater applications.

Rainwater tanks that are not used for potable water are often used to supply toilets, washing machines, and gardens.

Non-potable rainwater tanks often aren’t cleaned as frequently as potable rainwater tanks, this can lead to valves, etc being obstructed.

Hydra Rainmaster is designed to prevent sediment from depositing in the lines, valves from blocking, and improve odor.

Technical Specifications
Application Whole Supply
Brand Atlas Filtri
Element type Hydra Self CleaningFilters
Inlet Port 1"
Material Polypropylene/PET
Pump - Flow Rate L/min 95
Temperature Degree C 4C to 45C
