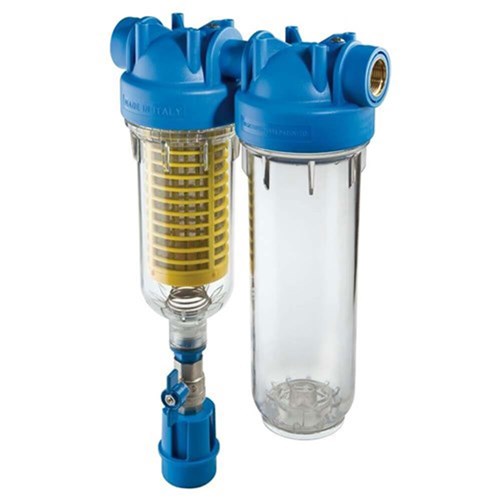

Hydra Duo with 90mic Self Cleaning Filter Included JustAdd a 10" Std Filter Cartridge

Product Code: MERW-807345

RRP $284.00
$284.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description

A Hydra Duo Self Cleaning Filter with 1” BSP Brass inlet/outlet with 90-micron stainless steel mesh filter moulded to an empty 10” standard housing.

For a complete solution – Just add a filter that suits your needs from our range of 10” standard filter cartridges.

Flow rates will vary depending on which filter cartridge you select.

Suitable for coarse sediment filtration on non-potable rainwater supplies, municipal water supplies, as a pre-filter for water treatment on rural supplies as well as some commercial and industrial applications.

The filter bowls are made from PET with an exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges gives an easy visual indicator of when the filter should be cleaned.

Features
Hydra – Cleans Your Water, Cleans Itself

Italian made, for superior construction, the Atlas Filtri hydra range of hydra self-cleaning filters make coarse sediment filtration easy and convenient.

Features include:

  • A range of low-maintenance mesh filters are available to fit your needs
  • Cartridges feature an antimicrobial flat seal
  • Counter-current self-cleaning system that can be either manual or automatic for maximum particle removal
  • The drain funnel has a backflow preventing device, so this is as easy to install on mains as it is in rural
  • All Hydra models come with
    • Spanner
    • Bracket
    • Lubrikit (O-ring Lubricant)
Working Conditions
Max Working Pressure 8bar (116 psi)
Max Working Temperature 45°C (113°F)
Min Working Temperature 4°C (39.2°F)

Hydra Multi-Stage

The Hydra multistage units are available as the Hydra Duo, a Hydra Filter moulded to a 10” standard filter housing, or as the hydra Trio, a Hydra Filter moulded to two 10” standard filter housings.

These are designed to be adaptable to your filtration requirements, just select the filters you require!

Flow rates on these units will depend on the filters you use.

Technical Specifications
Application Whole Supply
Brand Atlas Filtri
Element type Hydra Self CleaningFilters
Inlet Port 1"
Material Polypropylene/PET
Pump - Flow Rate L/min 95 L/M
Temperature Degree C 4C to 45C
