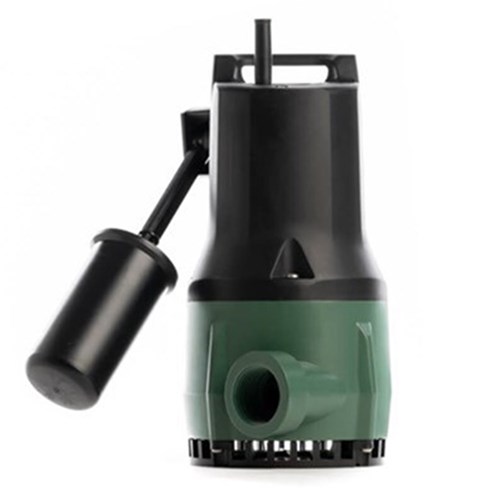

DAB-NOVA300A - Submersible Wastewater Pump with Float - 200L/min 6.8m 0.22kW 240V

Product Code: PGUWD-808967

RRP $555.00
$555.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
2 Years
Description
Submersible Drainage Pumps

Suitable for all dewatering tasks including pumping out sumps, flooded areas and drawing water from wells.

0.22kW, 0.3hp, 240V, AUTOMATIC, max hd 6.8m, max flow 200 L/min, rigid float arm, 1¼" BSPF outlet

2 Year DAB Pumps Warranty
Features

The NOVA line with open impeller is suited to all clean and waste water with solids measuring up to 10 mm.
It can be used to empty tanks, vats or cisterns, drain flooded basements, cellars and garages, and prevent flooding when installed in rainwater wells.
It can also be used as a portable pump in emergencies to drain water out of flooded rooms.

OPERATING RANGE

Flow rate up to 16 m3/h
with head up to 10.2 metres

LIQUID TEMPERATURE RANGE

from 0 °C to +35 °C for domestic use
from 0 °C to +50 °C for other uses

OUTPUT

1” ¼ F

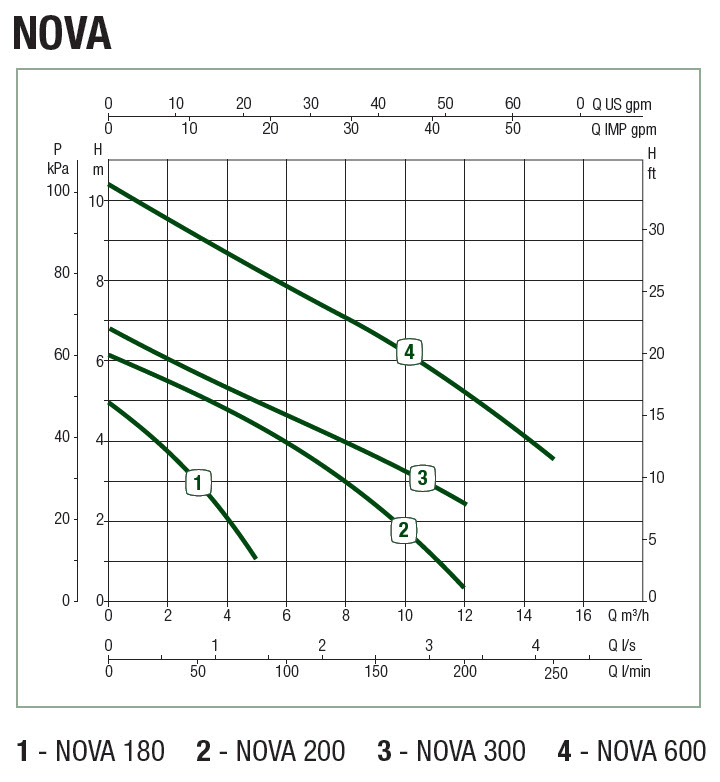

Technical Data
Model P2 (KW H Max (m) Q Max (L/min) Free Passage
NOVA 180 0.20 5 80 5mm
NOVA 200 0.22 6.1 200 5mm
NOVA 300 0.22 6.8 200 10mm
NOVA 600 0.55 10.5 250 10mm


Spare Parts
Code
Part Number
Description
804945
DABS R00005306
702703
DABSR00008732 8UF LEAD
702693
DABSR00008623
702701
DABSR00008723
702690
DABSR00008605
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Brand DAB Pumps
Motor - Rated HP 0.3 Hp
Motor - Rated KW 0.22 kW
Pump - Flow Rate L/min 200 L/min
Pump - Head, max metres 6.8 m
Range Flow c. 200 - 299 L/min
Range Head a. 0 - 39 m
Size Port 1 1/4" BSPF outlet
Voltage 240 V
