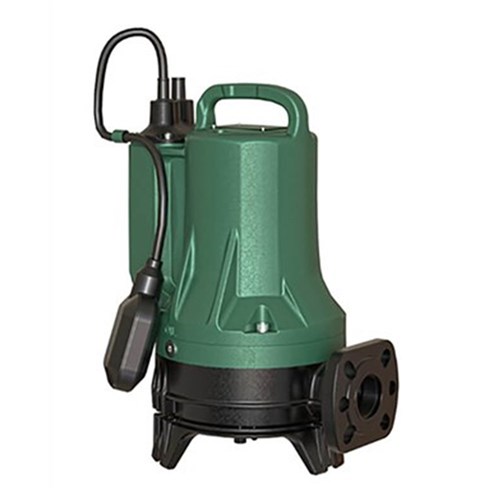

DAB-GRINDERFX15.15MA - Grinder Submersible Pump 320 L/M 27.33M 1.6KW 240V Auto

Product Code: PGUWD-810005

RRP $3200.00
$3200.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
2 Years
Description

Grinder Pump

Max head 27.3m, max flow 320 L/m, 1-1/2"BSPF

Features

  • High resistance stainless steel grinder system
  • Suitable for the transfer of sewage water at high pressure or when narrow piping is needed to keep down system installation costs
  • Single-phase versions with starter and capacitor in a separate panel
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Pump body and impeller in cast iron, shredder in AISI 630
  • Threaded and flanged outlet
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Brand DAB Pumps
Motor - Rated KW 1.5 kW
Pump - Flow Rate L/min 320 L/min
Pump - Head, max metres 27.3 m
Range Flow d. 300 - 399 L/min
Range Head a. 0 - 39 m
Size Port RP1-1/2" - DN32PN10/6, DN40PN6
Voltage 240 V
