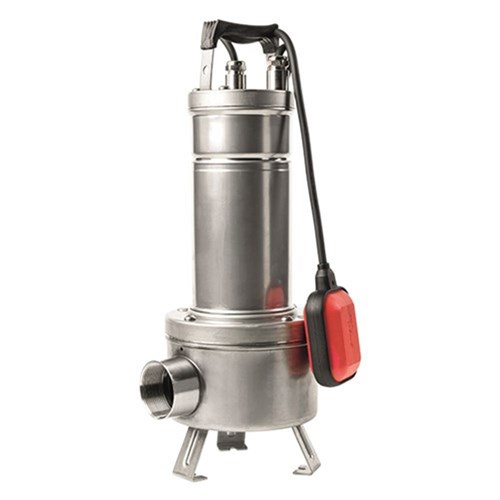

DAB-FEKAVS750MA - PUMP SUBMERSIBLE HEAVY DUTY WITH FLOAT 400L/MIN 9.6M 0.75KW 240V

Product Code: PGUWD-701560

RRP $1303.50
$1303.50 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
2 Years
Description
DAB Heavy Duty Stainless Steel Vortex Pumps

Submersible centrifugal pump with liquid vortex cast steel impeller (technopolymer impeller for Feka VX), suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm. Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.

0.75kW, 1.0hp, 240V, max hd 9.6m, max flow 400L/m, 2" BSPF outlet. Particle size 50mm.

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Brand DAB Pumps
Element type Vortex Pump
Motor - Rated HP 1 Hp
Motor - Rated KW 0.75 kW
Power Source Electric
Pump - Flow Rate L/min 400 L/min
Pump - Head, max metres 9.6 m
Range Flow e. 400 - 499 L/min
Range Head a. 0 - 39 m
Size 50 mm
Size Port 2" BSPF outlet
Voltage 240 V
