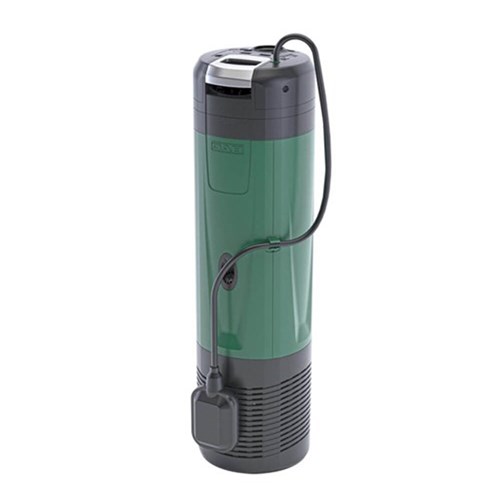

DAB-ESYDIVER 55/120 - 7" Electronic Multistage Submersible Pump with VFD 120L/Min 55m Head 1.0KW

Product Code: PGUWD-808452

RRP $3200.00
$3200.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
2 Year Pump Parts and Labour
Description
  • 7" Electronic Multi Stage Pump with inverter
  • The DConnect Box 2 allows access to the DAB Cloud Service. With the new app, you can manage and monitor the pressure of the system, the alarms and the residual availability of water in the tank directly from your smartphone or tablet, wherever you may be!
  • The Optional External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
  • The Bleed Valve allows immediate priming upon initial installation
  • The modular components of the pump make it easier to perform maintenance
  • The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
  • The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
  • Large range to suit most applications
  • Ergonomic Carry Handle for easy transportation and installation
  • Resistance to high and low temperatures
  • Certified for Drinking Water
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com


Technical Specifications
Brand DAB Pumps
Motor - Rated KW 1
Pump - Flow Rate L/min 120
Pump - Head, max metres 55m
Range Flow a. 100 - 199 L/min
Range Head b. 40 - 59 m
Size Port 1 1/4" BSPF outlet
Voltage 240 V
