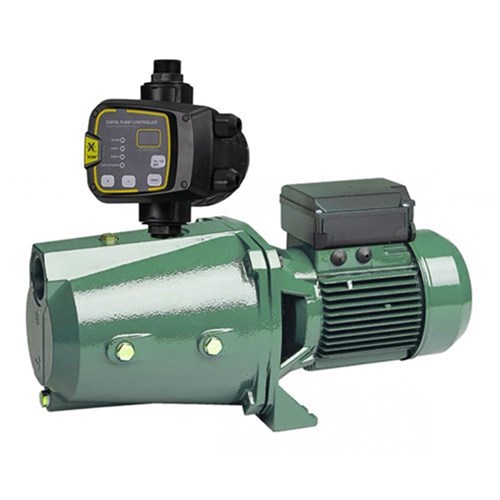

DAB-300NXTP - Cast Iron Jet Pump with nXt PRO Pump Controller 51m 2.2kW 240V

Product Code: PGUWD-808427

RRP $2200.00
$2200.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
24 Months
Description
DAB Surface Mounted - Jet Pump with NXT intelligent 2 mode controller

Ideal for medium to large homes. Suitable for high density urban applications and agriculture.

2.2kW, 3.0hp, 240V, max hd 51m, max flow 185L/m, 18 taps. Ports 1½" BSPF In, 1¼" BSPM Out. Controller with fully adjustable cut in pressure 0.5 to 6 bar.

Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.


Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Modes

Two operational modes:

  • Mode One - Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two - Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.


Controller Flow Curve


Controller Brochure
View Brochure


nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1"
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Approval Approved For Drinking Water
Brand DAB Pumps
Element type Pressure System
Motor - Current Amps 12
Motor - Rated HP 3
Motor - Rated KW 2.2
Power Source Electric
Pump - Float number No
Pump - Flow Rate L/min 185
Pump - Head, max metres 51
Range Flow b. 100 - 199 L/min
Range Head b. 40 - 59 m
Size Port 1 1/2" BSPF inlet
Size Port 1 1/4" BSPM outlet
Voltage 240
