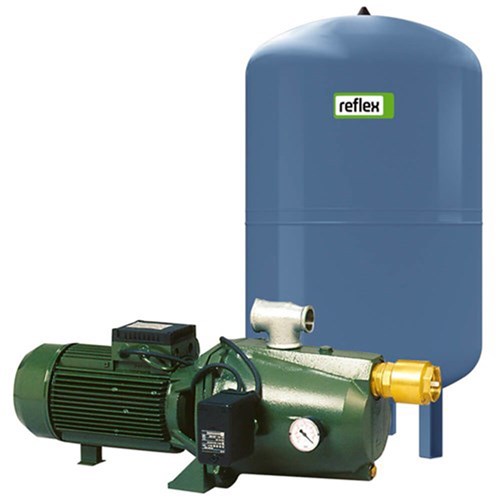

DAB-300MP - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 175L/MIN 51M 2.2KW 240V + 50L

Product Code: PGUWD-600180

RRP $2546.00
$2546.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
24 Months
Description
Self Priming Single and Multistage Cast Iron Jet Pressure Systems

2.2kW, 3.0hp, 240V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

Includes 50L Vertical Pressure Tank

PressureWave Series Vertical Tanks, Diaphragm FDA Approved - High Grade Butyl

Stainless steel water connection corrosion resistant. Controlled action diaphragm. Brass air stem with sealing cap eliminates air leaks, longer life, no regular air checks required. Appliance quality paint finish looks better. Food grade FDA approved High-Grade Butyl membrane. Suitable for drinking water, bacteria resistant. Condensation reducing design reduces corrsion

Warranty

2 Year DAB Pumps Warranty

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Approval Approved For Drinking Water
Brand DAB Pumps
Motor - Rated HP 3 Hp
Motor - Rated KW 2.2 kW
Power Source Electric
Pump - Flow Rate L/min 175 L/min
Pump - Head, max metres 51 m
Range Flow b. 100 - 199 L/min
Range Head b. 40 - 59 m
Size Port 1 1/2" BSPF inlet
Size Port 1-1/4" BSPF outlet
Voltage 240 V
