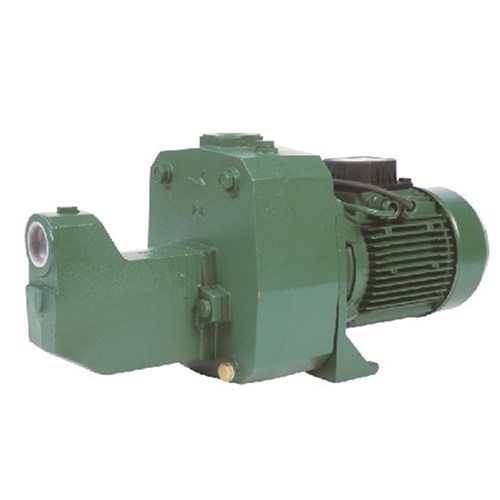

DAB-151M - PUMP SURFACE MOUNTED CAST IRON 75L/MIN 61M 1.1KW 240V

Product Code: PGUWD-701388

RRP $1595.00
$1595.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
2 Years
Description
Self Priming Multistage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.

Spare Parts
Code
Part Number
Description
702211
DABSR00005205 6204DU
702212
DABSR00005206 31.5UF CABLE
702229
DABSR00005242
702231
DABSR00005244
702234
DABSR00005248
702308
DABSR00005428
802657
DABS R00009981
702207
DABSR00005199
702129
DABSR00004703
702235
DABSR00005249
702219
DABSR00005213
702214
DABSR00005208
702228
DABSR00005241
702236
DABSR00005250
702252
DABSR00005274
702677
DABSR00007849
702227
DABSR00005240
702217
DABSR00005211
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Brand DAB Pumps
Element type Multistage Jet Pump
Motor - Rated HP 1.5 Hp
Motor - Rated KW 1.1 kW
Power Source Electric
Pump - Flow Rate L/min 75 L/min
Pump - Head, max metres 61 m
Range Flow a. 0 - 99 L/min
Range Head c. 60 - 99 m
Size Port 1 1/4" BSPF inlet
Size Port 1" BSPF outlet
Voltage 240 V
