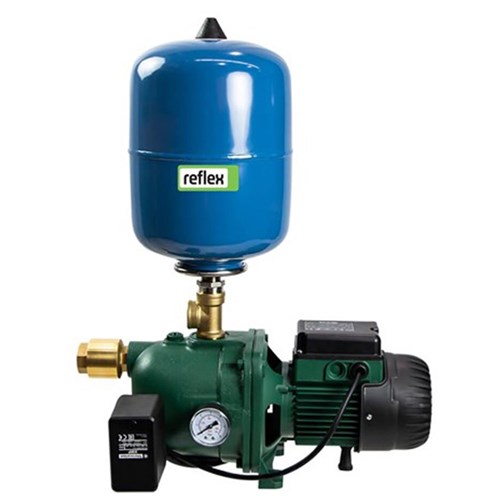

DAB-132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V +18L TANK

Product Code: PGUWD-600166

RRP $1320.00
$1320.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
2 Year DAB Pump Warranty
5 Year Reflex Tank Warranty
Description
DAB Self Priming Cast Iron Jet Pressure Pumps

Includes a Reflex DE18 Pressure Tank and Connection Kit

1.0 kW, 1.36 hp, 240V, Automatic with pressure switch, max hd 48m, max flow 80L/m

2 Year DAB Pump Warranty
5 Year Reflex Tank Warranty

Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.

WaterMark Approved

WATERMARK APPROVAL - WMKA00105 to AS/NZS3499

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.


DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.



Technical Specifications
Approval Approved For Drinking Water
Brand DAB Pumps
Motor - Rated HP 1.36 Hp
Motor - Rated KW 1 kW
Power Source Electric
Pump - Flow Rate L/min 80 L/min
Pump - Head, max metres 48 m
Range Flow a. 0 - 99 L/min
Range Head b. 40 - 59 m
Size Port 1" BSPF inlet
Size Port 1" BSPM outlet
Voltage 240 V
