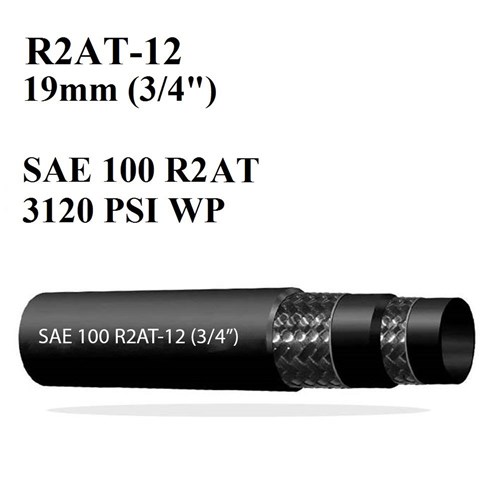

CUSTOMISED HYDRAULIC HOSE ASSEMBLY - R2AT-12 (3/4") BSP - JIC COMBINATIONS

Product Code: HHR02C-12

RRP $0.00
$0.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each

Create your kit

1. Core Components

Core Components Description
LICFA Labour Charge - FITTING ASSY

2. Customise Product

2. Variable Quantity Items:

HYD HOSE - R2AT No-Skive HHRR02-12 Size: 3/4" Cut Length MTR 1.0000 $59.12
CRIMP CPLG - BSPPM HYC021A10-1212 Size: 3/4" x 3/4" EA 1.0000 $38.45
CRIMP CPLG - BSPPF S/W HYC021A17-1212 Size: 3/4" x 3/4" EA 1.0000 $37.12
CRIMP CPLG - BSPPF S/W HYC021A17-1216 Size: 3/4" x 1" EA 1.0000 $59.07
CRIMP CPLG - BSPF FLAT FACE HYC021A19-1212 Size: 3/4" x 3/4" EA 1.0000 $51.71
CRIMP CPLG - BSPTM HYC021A22-1212 Size: 3/4" x 3/4" EA 1.0000 $35.80
CRIMP CPLG - JICM HYC021A50-1217 Size: 3/4" x 1.1/16" EA 1.0000 $35.80
CRIMP CPLG - JICM HYC021A50-1221 Size: 3/4" x 1.3/16" EA 1.0000 $57.02
CRIMP CPLG - JICF S/W HYC021A53-1212 Size: 3/4" x 3/4" EA 1.0000 $84.86
CRIMP CPLG - JICF S/W HYC021A53-1214 Size: 3/4" x 7/8" EA 1.0000 $47.73
CRIMP CPLG - JICF S/W HYC021A53-1217 Size: 3/4" x 1.1/16" EA 1.0000 $38.45
CRIMP CPLG - JICF S/W HYC021A53-1219 Size: 3/4" x 1.3/16" EA 1.0000 $63.65
CRIMP CPLG - JICF S/W HYC021A53-1221 Size: 3/4" x 1.5/16" EA 1.0000 $64.97
CRIMP CPLG 90C ELB - BSPF S/W HYC021B17-1212 Size: 3/4" x 3/4" EA 1.0000 $68.95
CRIMP CPLG 90C ELB - JICF S/W HYC021B53-1217 Size: 3/4" x 1.1/16" EA 1.0000 $72.27
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-1212 Size: 3/4" x 3/4" EA 1.0000 $66.17
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1214 Size: 3/4" x 7/8" EA 1.0000 $76.38
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1217 Size: 3/4" x 1.1/16" EA 1.0000 $66.30
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1221 Size: 3/4" x 1.3/16" EA 1.0000 $66.30
CRIMP CPLG 90L ELB - JICF S/W HYC021H53-1217 Size: 3/4" x 1.1/16" EA 1.0000 $103.43
PLASTIC GUARD - 27.0 mm ID HPPT01-032 Size: 32 mm MTR 1.0000 $17.16

3. Optional Items:

Fitting off-set angle x 0 Straight Ends or One angle Only LHAO-000 1.0000 $0.00
Fitting off-set angle x 45 LHAO-045 1.0000 $0.00
Fitting off-set angle x 90 LHAO-090 1.0000 $0.00
Fitting off-set angle x 135 LHAO-135 1.0000 $0.00
Fitting off-set angle x 180 LHAO-180 1.0000 $0.00
Fitting off-set angle x 225 LHAO-225 1.0000 $0.00
Fitting off-set angle x 270 LHAO-270 1.0000 $0.00
Fitting off-set angle x 315 LHAO-315 1.0000 $0.00

4. Add to Cart

$$15.65 $0.00 $0.00
Description
 Easy How To Steps
1  Recognise Hose - Type & Size        See How     https://www.batind.com.au/Themes/BPDTHEME01/theme-client-updates/Hose Identification.pdf?u=1Ulg4d5
Identify End Connections               See How

3  Measure Assembly Hose length    See How     https://www.batind.com.au/images/Measure Assembly.pdf?u=1UliN7
4  Build Your Hose                                See How
5  Track Your Delivery
