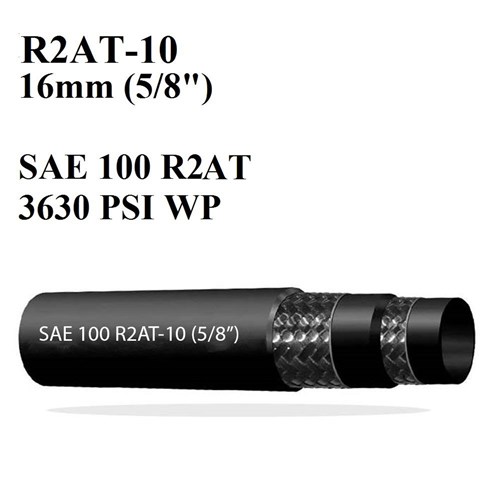

CUSTOMISED HYDRAULIC HOSE ASSEMBLY - R2AT-10 (5/8") BSP - JIC COMBINATIONS

Product Code: HHR02C-10

RRP $0.00
$0.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each

Create your kit

1. Core Components

Core Components Description
LICFA Labour Charge - FITTING ASSY

2. Customise Product

2. Variable Quantity Items:

HYD HOSE - R2AT No-Skive HHRR02-10 Size: 5/8" Cut Length MTR 1.0000 $52.55
CRIMP CPLG - BSPPF S/W HYC021A17-1008 Size: 5/8" x 1/2" EA 1.0000 $64.97
CRIMP CPLG - BSPPF S/W HYC021A17-1010 Size: 5/8" x 5/8" EA 1.0000 $34.47
CRIMP CPLG - BSPPF S/W HYC021A17-1012 Size: 5/8" x 3/4" EA 1.0000 $65.64
CRIMP CPLG - JICM HYC021A50-1014 Size: 5/8" x 7/8" EA 1.0000 $33.15
CRIMP CPLG - JICM HYC021A50-1017 Size: 5/8" x 1.1/16" EA 1.0000 $39.78
CRIMP CPLG - JICF S/W HYC021A53-1012 Size: 5/8" x 3/4" EA 1.0000 $33.15
CRIMP CPLG - JICF S/W HYC021A53-1014 Size: 5/8" x 7/8" EA 1.0000 $37.12
CRIMP CPLG - JICF S/W HYC021A53-1017 Size: 5/8" x 1.1/16" EA 1.0000 $39.78
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-1010 Size: 5/8" x 5/8" EA 1.0000 $74.25
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1014 Size: 5/8" x 7/8" EA 1.0000 $57.68
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-1017 Size: 5/8" x 1.1/16" EA 1.0000 $66.30
CRIMP CPLG 45S ELB - BSPF S/W HYC021J17-1010 Size: 5/8" x 5/8" EA 1.0000 $74.25
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-1014 Size: 5/8" x 3/4" EA 1.0000 $60.33
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-1017 Size: 5/8" x 7/8" EA 1.0000 $66.30
PLASTIC GUARD - 21.0 mm ID HPPT01-025 Size: 25 mm MTR 1.0000 $12.26

3. Optional Items:

Fitting off-set angle x 0 Straight Ends or One angle Only LHAO-000 1.0000 $0.00
Fitting off-set angle x 45 LHAO-045 1.0000 $0.00
Fitting off-set angle x 90 LHAO-090 1.0000 $0.00
Fitting off-set angle x 135 LHAO-135 1.0000 $0.00
Fitting off-set angle x 180 LHAO-180 1.0000 $0.00
Fitting off-set angle x 225 LHAO-225 1.0000 $0.00
Fitting off-set angle x 270 LHAO-270 1.0000 $0.00
Fitting off-set angle x 315 LHAO-315 1.0000 $0.00

4. Add to Cart

$$15.65 $0.00 $0.00
Description
 Easy How To Steps
1  Recognise Hose - Type & Size        See How     https://www.batind.com.au/Themes/BPDTHEME01/theme-client-updates/Hose Identification.pdf?u=1Ulg4d5
2  Identify End Connections               See How
3  Measure Assembly Hose length    See How     https://www.batind.com.au/images/Measure Assembly.pdf?u=1UliN7
4  Build Your Hose                                See How
5  Track Your Delivery
