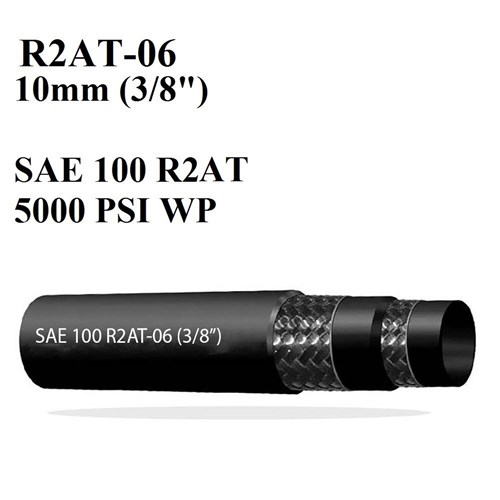

CUSTOMISED HYDRAULIC HOSE ASSEMBLY - R2AT-06 (3/8") BSP - JIC COMBINATIONS

Product Code: HHR02C-06

RRP $0.00
$0.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each

Create your kit

1. Core Components

Core Components Description
LICFA Labour Charge - FITTING ASSY

2. Customise Product

2. Variable Quantity Items:

HYD HOSE - R2AT No-Skive HHRR02-06 Size: 3/8" Cut Length MTR 1.0000 $35.47
CRIMP CPLG - BSPPM HYC021A10-0606 Size: 3/8" x 3/8" EA 1.0000 $21.34
CRIMP CPLG - BSPPM HYC021A10-0608 Size: 3/8" x 1/2" EA 1.0000 $24.53
CRIMP CPLG - BSPPF S/W HYC021A17-0604 Size: 3/8" x 1/4" EA 1.0000 $30.16
CRIMP CPLG - BSPPF S/W HYC021A17-0606 Size: 3/8" x 3/8" EA 1.0000 $19.89
CRIMP CPLG - BSPPF S/W HYC021A17-0608 Size: 3/8" x 1/2" EA 1.0000 $31.02
CRIMP CPLG - BSPF FLAT FACE HYC021A19-0606 Size: 3/8" x 3/8" EA 1.0000 $30.49
CRIMP CPLG - BSPF FLAT FACE HYC021A19-0608 Size: 3/8" x 1/2" EA 1.0000 $33.15
CRIMP CPLG - BSPTM HYC021A22-0604 Size: 3/8" x 1/4" EA 1.0000 $23.13
CRIMP CPLG - BSPTM HYC021A22-0606 Size: 3/8" x 3/8" EA 1.0000 $18.43
CRIMP CPLG - BSPTM HYC021A22-0608 Size: 3/8" x 1/2" EA 1.0000 $19.89
CRIMP CPLG - JICM HYC021A50-0609 Size: 3/8" x 9/16" EA 1.0000 $21.21
CRIMP CPLG - JICM HYC021A50-0612 Size: 3/8" x 3/4" EA 1.0000 $25.19
CRIMP CPLG - JICM HYC021A50-0614 Size: 3/8" x 7/8" EA 1.0000 $27.84
CRIMP CPLG - JICF S/W HYC021A53-0607 Size: 3/8" x 7/16" EA 1.0000 $26.98
CRIMP CPLG - JICF S/W HYC021A53-0609 Size: 3/8" x 9/16" EA 1.0000 $19.09
CRIMP CPLG - JICF S/W HYC021A53-0612 Size: 3/8" x 3/4" EA 1.0000 $19.22
CRIMP CPLG - JICF S/W HYC021A53-0614 Size: 3/8" x 7/8" EA 1.0000 $26.12
CRIMP CPLG 90C ELB - BSPF S/W HYC021B17-0606 Size: 3/8" x 3/8" EA 1.0000 $39.78
CRIMP CPLG 90C ELB - JICF S/W HYC021B53-0609 Size: 3/8" x 9/16" EA 1.0000 $37.12
CRIMP CPLG 90C ELB - JICF S/W HYC021B53-0612 Size: 3/8" x 3/4" EA 1.0000 $39.78
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-0606 Size: 3/8" x 3/8" EA 1.0000 $42.16
CRIMP CPLG 90S ELB - BSPF S/W HYC021G17-0608 Size: 3/8" x 1/2" EA 1.0000 $45.08
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-0609 Size: 3/8" x 9/16" EA 1.0000 $39.78
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-0612 Size: 3/8" x 3/4" EA 1.0000 $40.44
CRIMP CPLG 90S ELB - JICF S/W HYC021G53-0614 Size: 3/8" x 7/8" EA 1.0000 $51.71
CRIMP CPLG 90L ELB - JICF S/W HYC021H53-0609 Size: 3/8" x 9/16" EA 1.0000 $59.67
CRIMP CPLG 90L ELB - JICF S/W HYC021H53-0612 Size: 3/8" x 3/4" EA 1.0000 $64.31
CRIMP CPLG 45S ELB - BSPF S/W HYC021J17-0606 Size: 3/8" x 3/8" EA 1.0000 $42.16
CRIMP CPLG 45S ELB - BSPF S/W HYC021J17-0608 Size: 3/8" x 1/2" EA 1.0000 $45.08
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-0609 Size: 3/8" x 9/16" EA 1.0000 $47.20
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-0612 Size: 3/8" x 3/4" EA 1.0000 $45.08
CRIMP CPLG 45S ELB - JICF S/W HYC021J53-0614 Size: 3/8" x 7/8" EA 1.0000 $51.71
PLASTIC GUARD - 16.0 mm ID HPPT01-020 Size: 20 mm MTR 1.0000 $9.81

3. Optional Items:

Fitting off-set angle x 0 Straight Ends or One angle Only LHAO-000 1.0000 $0.00
Fitting off-set angle x 45 LHAO-045 1.0000 $0.00
Fitting off-set angle x 90 LHAO-090 1.0000 $0.00
Fitting off-set angle x 135 LHAO-135 1.0000 $0.00
Fitting off-set angle x 180 LHAO-180 1.0000 $0.00
Fitting off-set angle x 225 LHAO-225 1.0000 $0.00
Fitting off-set angle x 270 LHAO-270 1.0000 $0.00
Fitting off-set angle x 315 LHAO-315 1.0000 $0.00

4. Add to Cart

$$15.65 $0.00 $0.00
Description
 Easy How To Steps
1  Recognise Hose - Type & Size        See How     https://www.batind.com.au/Themes/BPDTHEME01/theme-client-updates/Hose Identification.pdf?u=1Ulg4d5
Identify End Connections               See How

3  Measure Assembly Hose length    See How     https://www.batind.com.au/images/Measure Assembly.pdf?u=1UliN7
4  Build Your Hose                                See How
5  Track Your Delivery
