Above-Ground Rainwater Management Systems
Suitable for domestic toilets, washing machines & external garden taps.
Why this pump?
ClayTech Management Systems (CMS) provides the convenience of automatic selection between your water tank and mains supply, with an emphasis on maximizing the use of your rainwater
When tank water is available the CMS will draw water from this source using the pump to deliver your water requirements. During power outages or in the case your tank supply is depleted the CMS automatically transfers to the mains water supply. CMS will automatically select to supply from your water tank as soon as rainwater is available again.

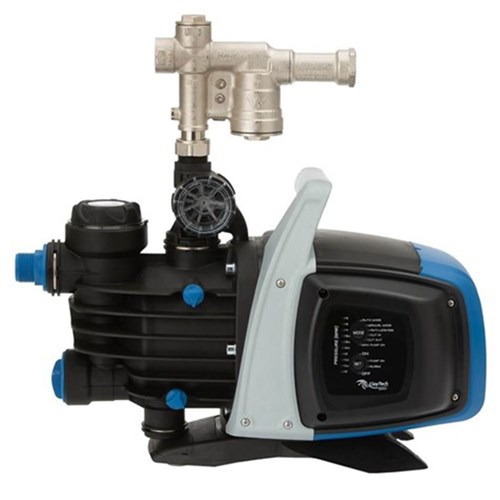

ClayTech M6 Pump
Compact, light, robust, and easy to use. Equipped with orientable suction connection plus integrated non-return valve and pre-filter for extended pump life. The facility to empty residual water to protect it from frost and accumulation of limescale is also included.
Suitable for domestic toilets, washing machines & external garden taps
- Auto Controller with loss of prime protection
- Swivel connection with quick release
- Pre-filter for easy maintenance
- Integrated easily accessible non-return valve
- Quiet, water-cooled motor
- LED Display
Aquatron Controller
- It allows automatic pump operation: It starts the pump when the tap is turned on and stops it about 10 seconds after the tap is turned off.
- It protects the pump from dry operation: It stops the pump when there is no flow of water, thus preventing possible damage to the pump. This alarm is indicated by the LED called FAILURE on the front of the device.
- It ensures constant flow and pressure.
Technical Data
AcquaSaver Water Diversion Valve - 1 Inch
Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritize the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.
The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.
- Watermark approved
- Does not require regular maintenance
- No electrical consumption - No electronic components
- Solid brass construction - Fully weatherproof - Built to last
- Suitable for any pressure pump with sufficient head pressure
- Can be mounted in any position
- Built-in dual check valve for backflow prevention
How does the AcquaSaver Work?
The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure
When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.
The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.
The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.
The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.
