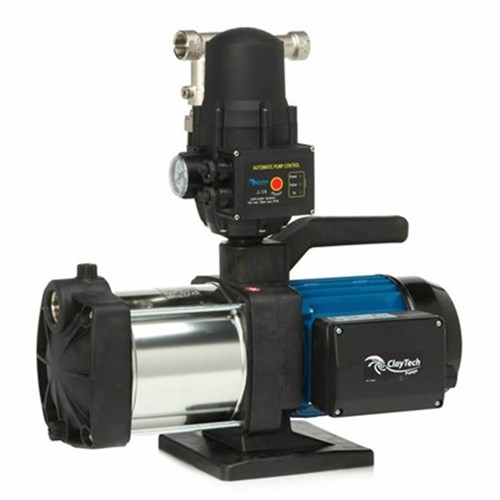

ClayTech CMS I240A2 - Inox 240A + 3/4" AcquaSaver

Product Code: PGUWC-807985

RRP $0.00
$0.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Features

Self-priming pump with a quiet, reliable operation designed for larger homes. Automatic operation with a 24-hour restart to see whether there is water in the tank.

Why this pump?

The Self-Priming Inox Series multi-stage pump is well-known for its quiet, reliable service in the Australian market. Designed for a larger Australian home, it is more energy-efficient than a jet pump but is self-priming to a depth of 4m. This makes it ideal for above and below-ground rainwater tanks. It has an automatic operation with the loss of prime protection and a 24-hour restart to see whether there is water in the rainwater tank. Ideal for whole-of-house installations.

Key Benefits
  • Multi-stage pump
  • Quiet, reliable operation
  • Designed for larger homes
  • Self-Priming, automatic operation
  • 24-hour restart to see whether there is water in the tank
Technical Data



AcquaSaver Water Diversion Valve - 3/4 Inches

Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritize the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
How does the AcquaSaver Work?

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to the position of the main.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Technical Specifications
Brand ClayTech Pumps
Inlet Port 1"
Outlet Port 1"
Maximum Flow (L/MIN) 100 L/min
Maximum Head (M) 48m
Power Absorbed (w) P2 750
