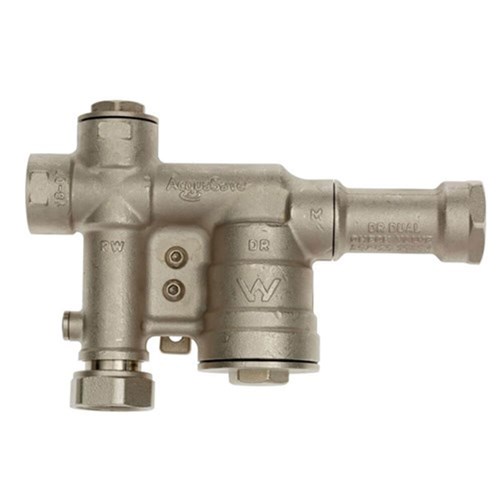

ClayTech AQUASAVER 3 - 1 Inch AcquaSaver Rainwater to Mains Water Diversion Valve

Product Code: PGUWC-807703

RRP $550.00
$550.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description
AcquaSaver Water Diversion Valve - 1 Inch

Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves. Prioritize the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.

Features

The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.

  • Watermark approved
  • Does not require regular maintenance
  • No electrical consumption - No electronic components
  • Solid brass construction - Fully weatherproof - Built to last
  • Suitable for any pressure pump with sufficient head pressure
  • Can be mounted in any position
  • Built-in dual check valve for backflow prevention
  • 2 Year warranty
Operation

The AcquaSaver® Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure

When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.

The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to the mains position.

The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.

The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet. This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Technical Specifications
Brand AcquaSaver
Inlet Port 1"
Outlet Port 1"
Pump - Flow Rate L/min 100 l/min
Max Pressure 350Kpa
