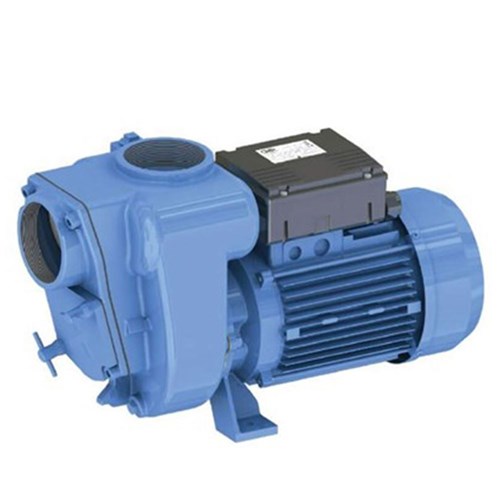

AUSSIE SEMI TRASH PUMP

Product Code: PGUA-B3KQST-1

RRP $2471.00
$2471.00 ex GST
Increase value Decrease value
Quantity In Cart:
Qty Each (inc GST) Each
Description
  • Heavy duty cast construction
  • Open non clog style impeller for passing spherical, compressible solids in suspension.
  • Self primes from 6 metres vertical lift
  • Front mounted clean out port
  • Close coupled to Heavy duty TEFC single or three phase electric drive motor IP rated.
  • Cast Iron foot mounting on pump up to 2.2kW
  • Pumps 4kW & over mounted on steel base plate.
  • Silicone Carbide mech seal/alumina counterface with Nitrile rubber seals standard, option of tungsten carbide with Viton.
  • 316 Stainless steel motor shaft
  • No power lead or plug supplied

Industrial Applications

  • Industrial Waste
  • Livestock effluent
  • Sewage
  • Abattoir waste
  • Livestock waste
  • Wash by water recirculation
  • Batch plant
  • Mineral Processing
  • Quarries
  • Food Processing

Technical Specifications
Keywords Industrial Waste
Brand GMP
Inlet Port 80 mm (3")
Insulation Class IP 54
Motor - Electrics Single Phase x 2 Pole
Motor - Rated KW 2.2
Pump - Discharge Port 80 mm (3")
Pump - Flow Rate L/min 900
Pump - Head, max metres 16.0
Pump - Self Prime Metres 6.0
Pump - Shaft Seal Silicon Carbide
Pump - Solid matter max mm 27
Seal Material NBR
Working Pressure PSI 22
